- 16 -

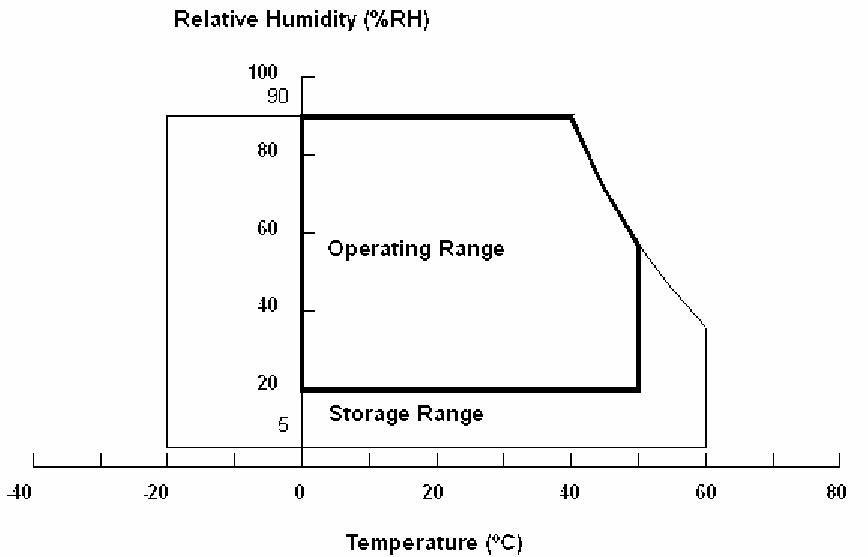

Panel Relative Humidity

JP777-E02

Input Signals

Video input

• Type Analog R, G, B. DVI (option)

• Input Impedance 75 ohm +/- 2%

• Polarity Positive

• Amplitude 0 - 0.7 +/- 0.05 Vp

• Display Color same as LCD panel

Sync input

• Signal separate horizontal and vertical sync, or composite sync

which are TTL compatible

• Polarity positive and negative.

Interface frequency

The following frequency range is generalized by supported timing. If the entered

mode does not match the supported timing the display optimization will not be

assured.

• Horizontal Frequency 30KHz --80KHz

• Vertical Frequency 49Hz -------75Hz
